Zero-Formaldehyde Carbon Crystal Panel
Description
Zero-Formaldehyde Carbon Crystal Panel – ENF-Grade Eco-Friendly Interior Solution
Through glue-free hot pressing, Zhengzhou Zhongxiu Building Materials Co., Ltd. makes Zero-Formaldehyde Carbon Crystal Panel using bamboo charcoal powder and high-molecular polymers. Each panel is 2.44m × 1.22m, with thicknesses of 5mm, 8mm, or 9mm and densities of 0.6 to 0.9 g/cm³ We source bamboo charcoal in-house and make ENF-certified Class B1 fire retardant panels. No ventilation is needed before occupancy, 0% water absorption, and a 10-year structural guarantee with SGS, REACH, and CE compliance documents.
What Makes This Panel Different?
Old-fashioned wood panels use formaldehyde adhesives that produce poisons for years. The Zero-Formaldehyde Carbon Crystal Panel has no chemical binders.
High-temperature fusion of bamboo charcoal and polymer resin occurs. The material is glue-free. Instant hospital-quality indoor air.
Bamboo charcoal has natural VOC absorption. Laboratory tests show formaldehyde, TVOC, and ambient odour purification. Asian hospitals and schools require this material for paediatric wards and respiratory treatment rooms.
The panel is impact-resistant. Material with a density exceeding 0.9 g/cm³ is as hard as solid wood. Daily usage doesn't cause scratches, and flame removal self-extinguishes the material.
Technical Specifications
| Parameter | Value |
|---|---|
| Length | 2.44 m (fixed) |
| Width | 1.22 m |
| Thickness Options | 5 mm / 8 mm / 9 mm/etc. |
| Core Material | Bamboo charcoal + high-molecular polymer |
| Density Range | 0.6–1 g/cm³ |
| Fire Rating | Class B1 (self-extinguishing) |
| Water Absorption | 0% (no swelling or blackening) |
| Formaldehyde Emission | ENF-grade (non-detectable) |

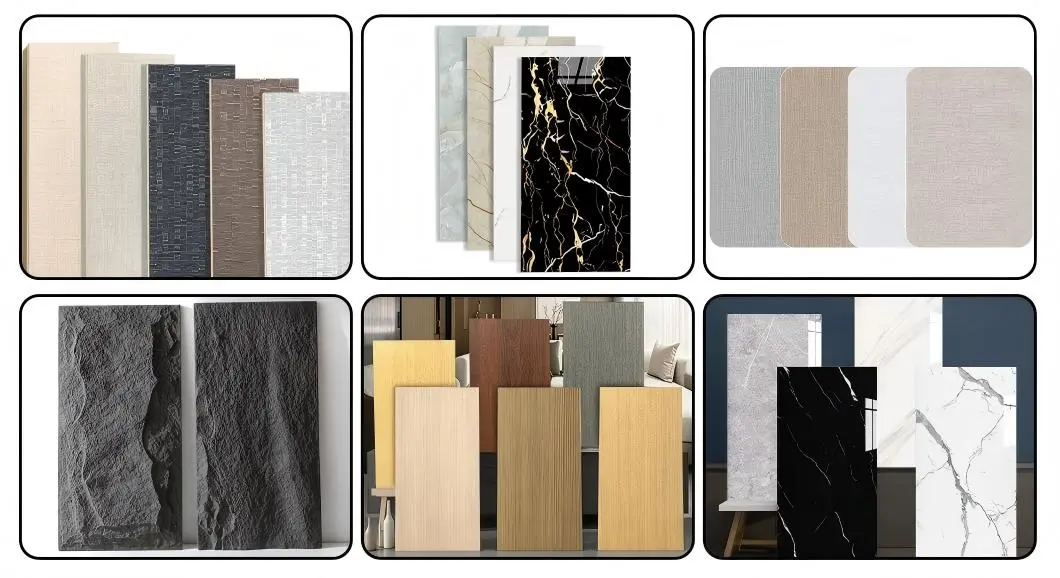

| Surface Finish | Soft-touch / High-gloss / Wood grain / Marble grain |
| Warranty | 10 years |
Quality Assurance You Can Trust
Our factory operates a two-stage inspection protocol covering raw material entry through final container loading.
In-Process Control:
Bamboo charcoal composition is verified at the mixing stage. Density measurements occur every 30 minutes during extrusion. Surface film adhesion undergoes real-time peel strength testing at ≥2.5 N/mm.
Pre-Shipment Validation:
Random samples from each production batch undergo 24-hour water immersion to confirm zero weight change. Fire retardancy is spot-checked against oxygen index thresholds. Dimensional accuracy stays within +0.5–1 mm tolerance.
You receive third-party SGS environmental reports and Class B1 fire certificates with every order. We provide free air quality test documentation upon request. Export packaging includes reinforced cartons and wooden pallets rated for intercontinental shipping.
Competitive Advantages
1. Verified Density Above Industry Floor
The carbon crystal panel market minimum density is 0.65 g/cm³. Budget suppliers cut costs by producing boards at 0.75–0.8 g/cm³, which fail under furniture loads. Our standard panels start at 0.8 g/cm³. Impact-resistant variants reach 0.9 g/cm³ for commercial high-traffic zones.
2. True Zero-Glue Manufacturing
We control bamboo charcoal sourcing from our partner mills. Hot-press fusion occurs in a closed environment without adhesive introduction. No urea-formaldehyde, phenol-formaldehyde, or isocyanate resins enter the production line. You eliminate off-gassing risk entirely.
3. Certified for Sensitive Occupancies
ENF-grade test results fulfil children's, geriatric, and allergy-safe room criteria. There are no prohibited compounds per REACH. CE certification verifies European market entrance.
4. Installation over existing surfaces
Due to its lightweight stiffness, structural adhesive can connect ceramic tile, painted plasterboard or aged plywood. You save on demolition and disposal. Jobs finish faster without dust or wet trades.
5. Uncompromised Moisture Performance
Traditional wood panels swell 8–12% in water. No formaldehyde is absorbed by our Carbon Crystal Panel. In 90%+ humidity, basement walls, bathroom ceilings and kitchen backsplashes remain sturdy. Anti-mold silicone seals wet-area joints.
Why Hospitals and Schools Specify This Material?
Hospitals must prove interior finishes won't cause sick building syndrome. Our panels ship with formaldehyde air quality test results below detection criteria.
The bamboo charcoal core actively decreases TVOCs. Within 48 hours of installation, independent lab testing shows benzene, toluene, and xylene adsorption.
Fire safety officials approve the B1 classification since the material self-extinguishes and smokes little. Toxicity testing shows no halogenated gases after burning, safeguarding evacuation routes.
Maintenance staff value scratch-resistance and cleanability. Antibacterial wipes don't damage surfaces. The non-porous coating minimises bacterial growth, facilitating infection control.
Application Flexibility
Residential Projects:
Ideal for feature walls in living rooms, bedroom accent panels, and full-room coverage in nurseries. The soft-touch finish provides warmth without wood's maintenance burden. High-gloss options create modern minimalist aesthetics.
Commercial Interiors:
Retail fitting rooms install quickly with adhesive mounting. Hotel corridors gain durability against luggage impact. Office reception areas achieve premium appearance with marble-grain finishes.
High-Humidity Environments:
Basement recreation rooms stay mold-free. Laundry room walls resist detergent splash. Enclosed balconies handle condensation without panel degradation.
FAQ
Q: What density should you specify for reliable performance?
A: Industry standard minimum sits at 0.65 g/cm³. Avoid budget panels at 0.75–0.8 g/cm³—they lack structural hardness and fail prematurely under load. For impact resistance in commercial spaces, require density above 0.9 g/cm³ to prevent dents from equipment strikes.
Q: Is bamboo charcoal air purification real or marketing?
A: Laboratory confirmation exists. SGS testing documents measurable adsorption of formaldehyde, TVOC, and odors. Hospitals in Southeast Asia and schools in Japan use this material specifically for indoor air quality improvement. The effect is passive but continuous.
Q: Can this panel be installed in a bathroom?
A: Yes. The material is fully waterproof with zero absorption. For wet areas, seal all joints with anti-mold silicone sealant. The panel itself won't swell, blacken, or delaminate even under direct water exposure during showering.
Q: How does it compare to WPC or SPC panels?
A: Carbon crystal panels offer higher dimensional stability across temperature ranges. The aesthetic finish quality exceeds standard WPC wood-grain printing. Fire resistance is superior—WPC often achieves only B2 rating, while our material consistently meets B1 self-extinguishing classification.
Q: What is the expected lifespan in residential use?
A: The structural integrity and surface finish are engineered for 15–25 years in climate-controlled interiors. The 10-year warranty covers delamination, warping, and color fade. Maintenance requires only damp cloth cleaning—no refinishing or resealing needed.
Contact Us
Our team provides product selection guidance, installation consultation, and project quantity calculations for the Zero-Formaldehyde Carbon Crystal Panel. Email: info@kangdishi.com.
