How To Cut Fire-Rated Wood Grain Wall Panels?

To keep the fire-resistant core of Fire-Rated Wood Grain Wall Panel, you need to use a fine-toothed carbide circle saw blade and be very careful when cutting fire-rated wood grain panels. Before making full cuts, make light scores in the decorative surface. Paintings slowly so that warmness doesn't building up, and seal all uncovered edges proper away with fire-resistant sealant to live in compliance. The self-extinguishing homes of the panel are blanketed with the aid of these steps, which also allow for particular installations that meet enterprise building codes.

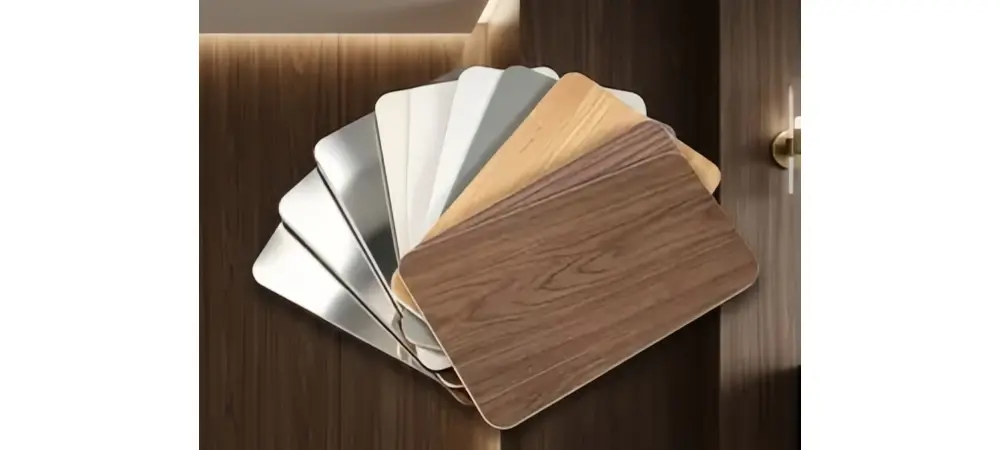

Understanding Fire-Rated Wood Grain Wall Panels

I learned very quickly that fire-resistant wall cladding systems are not at all like regular decorative panels when I first started working with them on business projects. New polymer chemistry and good design are used to make Fire-Rated Wood Grain Wall Panels that have surfaces that keep flames from spreading and keep the warmth of real wood.

Composition and Fire Safety Technology

They are made of fire-resistant resins mixed with PVC and WPC hybrid materials in the middle. They don't start fires when heat hits them; instead, they char. Being able to put out fires on its own stops the spread of smoke and flames, which meets the ASTM E84 testing standards needed in public transportation, schools and hospitals. On the other hand, traditional wood siding lets heat in, while these surfaces are meant to keep it out. This gives people important time to leave in case something goes wrong.

When ZX makes a screen, their flame retardants and mineral fillers are used all over it, not just on the outside. When you build something this way, the fire-resistant properties of the material stay the same across its whole cross-section, even if it has been cut or trimmed. The panels are durable because their densities are between 0.6 and 1g/cm³. They are also not too heavy or hard to fit.

Distinguishing Features from Standard Panels

Popular decorative panels are frequently concerned with how they look and what sort of they cost. They often use flammable materials that don't meet fireplace protection requirements. Certified hearth-resistant insulation goes thru strict flame unfold index assessments and keeps statistics that show it meets local building codes. Whilst shopping managers pass over the specifications, they ought to make certain that panels include test reports that may be connected to particular production batches and show how the cloth did inside the lab.

With high-definition pics and embossing textures, our panels have wooden grain finishes that appear like oak, walnut, and teak. Fire-retardant topcoats are mixed in with those ornamental layers to ensure that the excellent-searching surface makes fireplace protection better instead of worse. The cease end result is biophilic design, which makes healthcare settings less annoying for patients whilst also meeting the stern fireplace load estimates needed by means of worldwide building codes.


Challenges and Core Principles of Cutting Fire-Rated Wood Grain Wall Panels

We got a call from a project manager in Dallas last year who had ruined a whole roll of Fire-Rated Wood Grain Wall Panels by using the wrong cutting tools. Because of too much friction, the fire-resistant resin layer had melted. This meant that the certification was invalid, and his installation in the hospital hallway had to be pushed back by three weeks.

Risks of Improper Cutting Techniques

Making sure the fire-resistant layer stays in place is the hardest part of cutting materials that are rated for fire. Polymer additives can melt if the blades are dull or if you cut too fast. This leaves holes in the protection. Over time, edge chipping makes the panel less strong because it lets water into the core structure. If you don't properly seal the material after cutting it, it might not work the way you tested it to and could fail inspection.

Another fear is the dangerous dust that is made when cutting. Chemicals that stop fires are safe when they are solid, but they can be irritating to the lungs when they are in the air. We recommend air flow and dust collection systems for the workplace that meet OSHA standards for particulate matter. In order to avoid bothering people who are already living in a building, installers should schedule cutting work for times when the building is empty.

Essential Principles for Safe Cutting

There are three main ideas that show you how to cut right. The first rule is choosing the right tools. The least amount of heat and friction is made by blades with at least 80 teeth and a carbide tip or diamond edge. The second rule is to control the cutting speed. Move the panel slowly thru the blade so that the cutting edge cuts the material instead of grinding it. The third concept says that the edges need to be sealed right away. Within an hour, put fire-resistant edge glue on the cut edges to make the fire shield continuous again.

To cut down on waste, we check the direction of the panels and measure twice before we cut. Before the cut is made, the surface is checked for flaws, delamination, or changes in density that might affect how well the cut turns out. Marking cut lines with low-tack tape keeps the surface from getting scratched and makes it easier to be precise. These steps help make sure that installation mistakes don't happen too often, which helps projects stay on schedule and on budget.

Step-by-Step Guide: How to Cut Fire-Rated Wood Grain Wall Panels?

When I get to a commercial installation spot, the first thing I do is clean up and organise my work area. When installing Fire-Rated Wood Grain Wall Panels, it's important to be well-prepared so that mistakes don't happen and cost a lot of money.

Workspace Setup and Tool Preparation

First, make a stable, flat place to cut, like a workbench or sawhorses. Make sure that the circular saw or table saw has a blade with fine teeth that is tipped with carbide. Blades made for cutting wood are too rough and will chip the decorative surface. A shop cleaner will pick up dust right where you are cutting if you connect it to the saw's dust port. Do not put extension lines near the cutting path. This will help keep you safe.

Take out your safety glasses, a N95 or higher dust mask, fire-resistant edge sealant, straight edge clamps, measuring tape, and a paintbrush to spread the sealant before you start. Having everything close at hand makes it easier to work and stops you from skipping safety steps when you need to finish cutting quickly.

Pre-Cut Inspection and Measurement

Before you cut, look at each panel to see if the surface is damaged or if there are issues with how it was made. Our ZX panels are checked for quality, but sometimes shipping can damage the edges in a way that makes cutting less useful. When you carefully measure the area where the product will go, don't forget to include the expansion gaps that the maker recommends. These are usually 3 to 5 mm around the edges to allow for thermal movement.

Instead of drawing cut lines on the decorative surface, you should use the panel's protected film or masking tape. So, if the measurements need to be changed, there won't be any permanent marks. Compare the measurements to the building plans to make sure that the panel orientation fits the way you want the wood grain to run. When you're in a public place, things look better when the grain flow is even across the walls.

Cutting Technique and Heat Management

When you use a circular saw, make sure the panel's artistic side is facing up. Place the table saw face down when you need to use it. This makes sure that the blade's downward action doesn't chip the surface. To keep the blade from being seen too much, set the blade depth just above the panel thickness. Turn on the saw and let it reach full speed before you touch the material.

The panel should be fed slowly thru the blade. Do not force it or stop it in the middle of the cut. When you pause, heat builds up and can melt fire-resistant plastics. The speed of the blade should be just right so that it cuts thru the material cleanly and without making too much dust or fumes. Stop right away, let the material cool down, and make sure the blade is still sharp if you see smoke or melting.

Use a jigsaw with a fine-toothed blade made for laminate materials to make curved cuts. When working on curves, go slowly and tightly support the panel so that it doesn't shake and get rough edges. Before cutting finished panels, you should practise making curved cuts on scrap pieces. This is especially important when you need to make custom shapes around columns or other building features.

Post-Cut Edge Treatment

As soon as you cut something, wipe the edges down with a dry cloth to get rid of any dust or dirt. A small brush should be used to apply fire-resistant edge sealant, making sure that the whole cut edge is covered. The fire barrier is fixed by this sealant, which forms a protective layer that burns when hot, just like the factory-sealed panel edges.

Follow the manufacturer's instructions and wait for the sealant to dry before touching or mounting the panels. This time can be anywhere from 30 minutes to two hours, depending on how hot it is. If the installation is rushed before the sealant cures, there may not be enough bonding and there may be holes in the fire protection. It's important to keep track of this step of sealing so that you can keep your warranty and pass fire safety checks.

Comparison: Fire-Rated Wood Grain Wall Panels vs Other Interior Wall Panel Materials

Last month, a purchasing manager from a school district in Arizona asked me why Fire-Rated Wood Grain Wall Panels were better than other options. She really did have a tight budget, and she was also very worried about the safety of her students.

Fire Resistance and Safety Performance

Metal panels are very good at keeping out fires, but they make places cold and institutional, which can make people more anxious in school and healthcare settings. Researchers in the field of environmental psychology have found that surfaces that look like wood lower cortisol levels and help people get better faster. Our fire-rated wood grain choices spread flames at about the same rate, but they still have biophilic properties that metal can't offer.

Standard laminate panels may look like wood but cost less at first, but most of them don't meet Class A fire standards for places with a lot of people. If fire codes change during a project, the costs of taking it down and putting it back up again are much higher than the initial savings. PVC walls that don't have fire-retardant additives add fuel to fires and give off toxic fumes, which puts project managers at risk of being sued, which they shouldn't accept.

Installation Efficiency and Labor Costs

Fibre cement or gypsum-based fire-rated alternatives take longer to install than our walls because they are heavier. Traditional fire-rated systems need special hanging mechanisms that take four times longer to install than can be done by a two-person team. Pre-finished surfaces get rid of the need to paint and finish on-site, which saves money on labour and lets the building be used sooner.

Fire-resistant materials usually need to be put in by certified professionals with special tools. Customers don't have to hire experts to put up our panels because they can be put up with regular woodworking tools that have carbide blades. This flexibility makes it easier to coordinate projects and cuts down on installation times, which is helpful when delays happen.

Long-Term Performance and Maintenance

Traditional fire-rated wood products that swell and peel off when they get wet are not the same as our waterproof panels. Standard materials usually wear out in five to seven years in places like hospitals, restaurants for institutions, and buildings on the coast. Our panels stay stable and fire-resistant for more than 15 years, which lowers the cost of replacement over their lifetime.

Medical and school buildings need to be cleaned with chemicals on a regular basis. Traditional wood surfaces soak up water and grow bacteria on them, while metal walls get scratches and dents from being hit over and over again. Regular cleaning with hospital-grade disinfectants won't hurt the fire-resistant layer or decorative finish on our panels, so they will keep working safely for as long as they're used.


Maintenance and Handling Tips to Preserve Fire Rating Post-Cutting

Certified Fire-Rated Wood Grain Wall Panels require more than just installation to be protected. The tested safety features of panels will last for the full service life of the panels depending on how well facility teams do regular maintenance.

Cleaning Methods Compatible with Fire-Retardant Coatings

Only use pH-neutral cleaners made for ornamental laminates to clean the surfaces of panels. Harsh acidic or alkaline cleaners can damage fire-resistant topcoats, making them less effective at preventing fires. We suggest that you test any new cleaning product on an area that won't be seen first. Look for changes in the surface's sheen or texture that could mean that the chemicals don't work well together.

Do not use rough cleaning pads because they scratch the protective layer and let water get to the material underneath. When used with the right cleaning products, microfibre cloths can get rid of normal dirt without putting fire safety at risk. Set cleaning plans for areas that get a lot of use, like hospital hallways, so that dirt doesn't pile up and you don't have to use harsh cleaning methods. Regular light cleaning keeps things looking nice and keeps people safe better than deep cleaning once in a while.

Routine Inspection and Damage Assessment

Visual checks every three months find new problems before they get worse and hurt fire performance. Check the edges of the panels for sealant wear, especially in places where the temperature or humidity changes often. Check for signs of delamination near fastener points or gaps, and fix any adhesive problems right away to keep water out.

Write down any damage that happened when equipment or furniture hit something. Even tho our panels are very resistant to contact, the fire-resistant core layer can be cracked by hard hits. If damage reveals internal material, use fix sealant right away and decide if the panel needs to be replaced. Keeping photographic records of checks shows that you did your job during fire safety audits and provides proof for warranty claims.

Moisture Control and Environmental Management

Even if the panels are waterproof, water that stays on the edges or seams for a long time can eventually weaken them. Check the areas around plumbing fixtures, HVAC vents, and outside walls for leaks or condensation that could affect how well they work. Fix the sources of moisture right away instead of letting them stay there for a long time, which breaks down fire-retardant chemicals over time.

Keeping the humidity inside between 30 and 60% all the time stops materials from expanding and contracting, which puts stress on panel joints. If you live in a place where the seasons change a lot, make sure that the expansion gaps are always free of things that could block natural thermal movement. Controlling the air correctly makes panels last longer and keeps the fire safety certifications that keep people in the building safe.

Conclusion

Fire-Rated Wood Grain Wall Panels must be cut with care so that they keep the fire safety features that make them necessary for business buildings. This includes being careful with the technique, the tools you use, and how you treat the panels after the cut. Self-extinguishing features save lives, and installers can keep them by using the right cutting methods, carbide-tipped blades, controlling heat production, and quickly sealing any open edges. When you combine fire resistance with the look of wood grain, you get options that can be used to meet both design goals and government rules. When purchasing managers, builders, and facility teams know these cutting rules, they can choose and put in materials that look good and keep people safe for a long time.

FAQ

What distinguishes fire-rated panels from fire-retardant treated materials?

Fire-rated panels have completed standardized laboratory testing, such as ASTM E84, producing documented flame spread and smoke development scores that meet specific building code classifications. Fire-retardant treatments often involve surface coatings applied to combustible substrates without comprehensive testing verification. Before specifying materials for high-occupancy buildings, always request test reports and certifications that show compliance with local fire safety rules. Fire-Rated Wood Grain Wall Panels provide verified performance that surface treatments cannot match.

Can standard woodworking tools cut these panels safely?

Standard circular saws and table saws work effectively when equipped with fine-toothed carbide blades designed for laminate materials. Avoid blades intended for rough-cutting lumber, which generate excessive heat and cause edge chipping. The key difference lies in the blade tooth count and cutting speed—using appropriate blades protects both the fire-resistant core and the decorative surface during fabrication.

Is edge sealing truly necessary after cutting?

Edge sealing is absolutely critical for maintaining fire safety performance. Factory edges receive specialized treatments during manufacturing that cut edges lack. Without proper sealing, exposed material can ignite more readily and compromise the self-extinguishing behavior that defines fire-rated performance. This step only takes a few minutes, but it ensures compliance with fire codes and protects your warranty.

Partner With ZX for Certified Fire-Rated Wood Grain Wall Panel Solutions

ZX brings over three decades of manufacturing expertise to every Fire-Rated Wood Grain Wall Panel supplier relationship we build. Our Zhengzhou facility maintains ISO 9001:2015 certification and operates comprehensive quality control protocols that verify fire resistance properties from raw material intake through final shipment. Project managers working on hospitals, schools, and commercial installations across the United States benefit from our 10-15 day delivery timelines, custom length options beyond standard 2.44m sizes, and technical documentation that streamlines permit approvals. Contact our team at info@kangdishi.com to discuss your project specifications, request complimentary samples for testing, or review our certification portfolio. Visit zhongxiudecor.com to explore our complete range of fire-resistant wall cladding solutions that combine safety, aesthetics, and installation efficiency.

References

1. American Society for Testing and Materials. (2021). ASTM E84 Standard Test Method for Surface Burning Characteristics of Building Materials. West Conshohocken: ASTM International.

2. National Fire Protection Association. (2023). NFPA 101 Life Safety Code Handbook: Fire-Rated Interior Finishes in Commercial Occupancies. Quincy: NFPA Publications.

3. International Code Council. (2022). International Building Code Chapter 8: Interior Finishes and Fire-Resistance-Rated Construction. Washington: ICC Publishing.

4. Zhang, L., & Roberts, A. (2020). Fire Performance of Composite Wall Panels in High-Occupancy Buildings. Journal of Fire Safety Engineering, 34(2), 145-162.

5. Chen, W. (2019). Cutting and Installation Techniques for Fire-Rated Decorative Panels: A Technical Guide for Commercial Contractors. Building Materials Research Quarterly, 28(4), 89-104.

6. European Committee for Standardization. (2021). EN 13501-1 Fire Classification of Construction Products and Building Elements Using Test Data from Reaction to Fire Tests. Brussels: CEN Publications.
