How To Wood Panel A Wall With Fire-Rated Wood Grain Panels?

Installing wall panels that combine natural wood aesthetics with fire safety isn't complicated when you use the right materials and follow a structured approach. Fire-Rated Wood Grain Wall Panels offer a practical solution by merging polymer-based construction with self-extinguishing properties. These panels typically feature PVC or WPC cores treated with fire-retardant resins, allowing them to char rather than ignite during thermal events. The standard 1.22m width and customizable lengths of 2.44m to 2.7m simplify layout planning for commercial projects. Installation generally involves substrate preparation, adhesive application or mechanical fastening, and precise panel alignment, with most projects completing faster than traditional wood finishes due to pre-finished surfaces.

Understanding Fire-Rated Wood Grain Wall Panels

What Makes These Panels Different from Standard Wood Finishes?

Traditional wood flooring makes rooms warmer, but it can be very dangerous for businesses because it can catch fire. Fire-Rated Wood Grain Wall Panels are made of engineered materials that look like wood and meet strict safety standards. Mineral fillers and flame-retardant additives in the core material stop the flame from spreading. When heated, the surface turns into a protective char layer instead of fueling the fire. Because they put themselves out, they can be used in places like hospitals, schools, and public transit stations where people's safety is very important.

Fire Resistance Standards and Testing Protocols

The most important part of any commercial installation is the compliance documentation. Standardized tests are done on Fire-Rated Wood Grain Wall Panels to find out their flame spread score and smoke development rates. The ASTM E84 standard checks how fast flames can move across the surface of an object. Class A grades show the best resistance. International projects can use the same standards set by the European Union (EN). Every production batch is checked by independent labs, and our manufacturing partner makes sure that every shipment comes with certification papers that can be tracked and meet the needs of building inspectors and insurance companies.

Performance Benefits Beyond Fire Safety

Moisture protection is what sets high-quality Fire-Rated Wood Grain Wall Panels apart from cheap ones. The waterproof core keeps the fabric from breaking in places with a lot of humidity, like basements or buildings near the coast. This makes the service last longer than 15 years, even in tough conditions. Since the surface is already finished, there is no need to paint it on-site, which saves money on labor and speeds up the project. Different applications can be matched to different density options, ranging from 0.6g/cm³ to 1g/cm³. Higher-density options offer better impact resistance in child care or school settings.


Step-by-Step Guide: How to Wood Panel a Wall with Fire-Rated Wood Grain Panels?

Pre-Installation Preparation and Substrate Assessment

Installation success depends on how well the planning is done. First, check the walls to make sure they are clean, dry, and physically sound. Get rid of any finishes that are already there that could make bonding worse or open up air gaps. Use a moisture meter to look for problems with moisture; readings above 12% mean that work needs to be done before moving on. Consistent panel alignment is made possible by flat substrates that vary no more than 3 mm per 2 m span. If your walls aren't level, you can make a level fixing plane by installing furring strips. This part of preparation stops any future calls back and makes sure the fire rating of the Fire-Rated Wood Grain Wall Panels stays good.

Essential Tools and Materials

Saw blades with a carbide tip cut thru the dense body without damaging the edges. When glue alone isn't enough, a pneumatic brad nailer speeds up mechanical fastening. Generic versions don't stick as well as high-quality building glue made for bonding PVC. A laser level and other measuring tools keep installation lines straight across large sections of wall. Installers are protected from the fine particles that are made during cutting by safety gear like dust masks and eye protection. Having these things ready before you start keeps your work from getting interrupted.

Installation Process From First Panel to Finish

Start in the room's most noticeable part and work your way out to less noticeable spots. Place 300 mm apart straight beads of adhesive on the Fire-Rated Wood Grain Wall Panel, and then press it tightly against the substrate. Leave 3 to 5 mm of space around the edges to allow for heat movement. Using the tongue-and-groove method, connect two Fire-Rated Wood Grain Wall Panels next to each other. Tap the gaps closed gently with a rubber mallet so that the edges don't get damaged. Put in decorative trim pieces to hide gaps caused by growth and make corners and ends look more professional. This methodical approach keeps the patterns lined up and the fire rating intact by stopping material stress.

Post-Installation Inspection and Maintenance

Walk around the finished work in angled lighting to find any flaws or gaps that aren't lined up right. If you need to clean up installation debris, use a damp microfiber cloth instead of harsh solvents that could damage the finish. Make a regular maintenance plan that includes checking for delamination or moisture intrusion on a regular basis. To keep the protected finish in good shape, wipe down surfaces with pH-neutral cleaners. Write down the times of installation and the product batch numbers so that you can get a guarantee and plan your next purchase. These steps make sure that the building will work well for a long time and that it is in compliance during building audits.

Choosing the Right Fire-Rated Wood Grain Wall Panels for Your Project

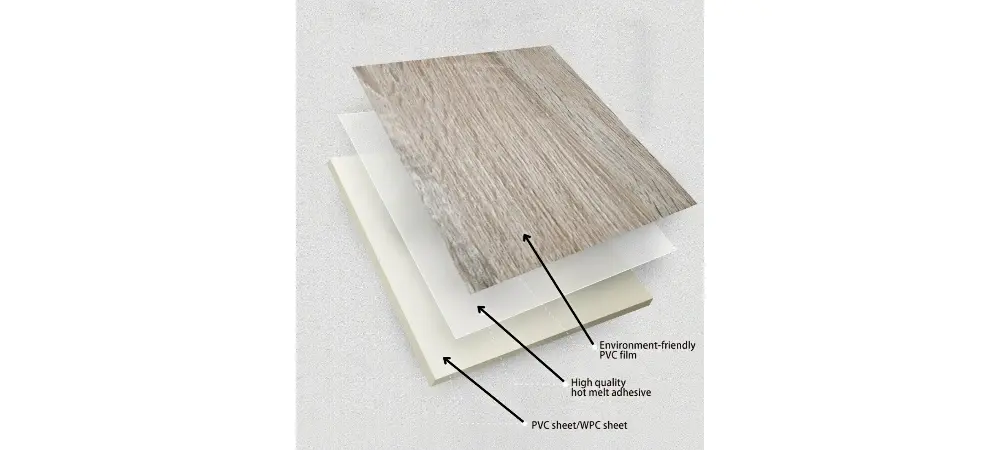

Material Composition and Performance Characteristics

PVC-based Fire-Rated Wood Grain Wall Panels are great for healthcare settings that need to be cleaned often because they don't absorb water and don't change shape. WPC composites are made by mixing thermoplastics with wood fibers. This gives the composites a more realistic wood texture while still being fire resistant. Both materials can be printed in high detail, which makes it possible to make wood grains that look like oak, walnut, or foreign woods very accurately. Which material to use depends on the needs of the project. WPC is best for uses that value natural looks, while pure PVC works best in areas with a lot of moisture or foot traffic.

Comparing Fire-Rated Panels with Alternative Wall Finishes

Metal walls can prevent fire, but they don't give off the same warm feeling that wood grains do in patient care areas. Fiber cement boards are good at preventing fires, but they need to be finished off-site, which adds to the cost of labor. Treated wood veneers keep their natural beauty, but they need to be maintained and re-treated every so often to keep their fire ratings. Fire-Rated Wood Grain Wall Panels composites get rid of these problems by combining safety, good looks, and low upkeep into one product. The initial investment pays off in the long run because it means fewer replacements and less maintenance.

Supplier Evaluation Criteria

When you work directly with a manufacturer, you avoid the markups that come from middlemen and get technical support throughout the whole project. Check the production facility's ISO 9001:2015 certification and ask for proof of regular quality controls. Before committing to full orders, sample testing lets you see for yourself how good the surface finish of the Fire-Rated Wood Grain Wall Panels is and how easy they are to install. Responding to messages (within 24 hours) shows that operations are running smoothly, which leads to dependable arrival times. Our Zhengzhou facility keeps a buffer stock of standard configurations so that emergency orders can be filled quickly and without delay, even if deadlines get squished out of the blue.


Procurement Tips for Fire-Rated Wood Grain Wall Panels

Understanding Pricing Structures and Volume Benefits

Thru economies of scale in manufacturing and logistics, buying in bulk can save you a lot of money per unit. Container-load sales of Fire-Rated Wood Grain Wall Panels make the most of freight economy, which lowers the cost of shipping per square meter. Our factory-direct plan gets rid of the middleman, which means that project managers get the cost saves straight away. Requests for customization, like matching colors, changing thicknesses, or getting special lengths, are easily incorporated into production runs and don't cost more. This gives you the freedom to be different in competitive buying situations while still sticking to your budget.

Customization Capabilities and Lead Time Considerations

With more than 300 custom molds, it's possible to match colors exactly to architectural samples or existing finishes. Custom lengths can fit different ceiling heights without making too much waste with Fire-Rated Wood Grain Wall Panels regular sizes. Different structural and soundproofing needs are met by thickness changes between 5mm and 10mm. Standard configurations are shipped from our central China logistics hub 10 days after the order is confirmed. Custom specifications add an extra 5–7 days to the production setup time, but the schedules for commercial construction projects can still be met. Getting in touch with our technical team early on lets you plan how to get the materials and when the installation crews can come.

Value-Added Services That Streamline Project Execution

Our team's quantity estimates keep you from wastefully buying too many Fire-Rated Wood Grain Wall Panels or being stuck in costly shortage delays. It's easier to fix problems on-site when the installation method suggestions take into account the conditions of the base and the way buildings are done in the area. As part of providing technical documentation support, test reports and certifications are put together in a way that makes permit applications go more quickly. Samples can be sent anywhere in the world so that materials can be looked at and tested independently before full purchases are made. With these services, the connection between the buyer and the seller changes from one of transactions to one of collaboration, forming partnerships that help the project succeed.

Ensuring Compliance and Safety: Fire Test Certifications and Standards

Essential Certifications for Commercial Applications

UL listings show that fire safety has been proven thru strict, independent testing standards used all over North America. The CE mark shows that the product meets European standards for health, safety, and the environment. Insurance companies need to see proof of fire resistance in high-value properties, and FM Global approval meets their needs. Multi-certification Fire-Rated Wood Grain Wall Panels are useful for international projects or places with complicated insurance needs because each certification covers a different set of rules. Our two-inspection process makes sure that all of our paperwork is correct—every shipment comes with test records that are special to the production batch.

Fire Resistance Classifications Explained

Class A ratings mean that the flame spread index is less than 25, which is the safest number for interior finishes in egress routes and areas with a lot of people. Materials in Class B that have scores between 26 and 75 are good for lower-risk places like private offices. When project teams understand these categories, they can choose the right Fire-Rated Wood Grain Wall Panels for each area of a building. When fire ratings for adjacent materials don't match, it can make the building less safe overall and make code enforcement reviews harder. We offer technical advice to make sure that all projects follow the same set of specifications.

Real-World Application Case Studies

Our Fire-Rated Wood Grain Wall Panels were recently chosen by a regional hospital network for a 12,000 square meter renovation project that will include new patient corridors and waiting areas. For daily cleaning routines, the project needed a Class A fire rating that could withstand water. Because the panels have a fast-mounting system, installation was finished three weeks ahead of schedule. This meant that the facility could start full operations earlier than planned. Post-occupancy polls showed that the wood grain finish made patients less stressed, showing that fire safety and healing environment concepts can work well together. Similar uses in schools and business places show that the material is flexible enough to be used in a wide range of demanding B2B settings.

Conclusion

Fire-Rated Wood Grain Wall Panels are a useful option for business areas that need to meet safety standards and look good at the same time. The fitting process stays simple as long as the base is properly prepared and the panels are placed in a planned way. Choosing between PVC and WPC composites as a material relies on the surroundings and the goals of the design. Direct relationships with manufacturers that allow for customization and dependable shipping schedules are helpful for procurement. Full certificates and recorded fire tests make sure that building codes are followed and that insurance companies will accept the work. When project managers know about these things, they can confidently choose materials that protect occupants and make interiors that are inviting and support facility goals and occupant health.

FAQ

Can fire-rated wood grain panels be installed in outdoor applications?

The main purpose of these Fire-Rated Wood Grain Wall Panels is to be used inside, where the air is controlled. For outdoor uses, special UV-stabilized formulations and better weather-sealing systems are needed that aren't included in standard configurations. For covered outdoor areas like transit shelters, there are marine-grade coatings and modified polymer blends available. However, fire-rating standards are different for materials used on the outside compared to those used on the inside. If your project has partially open areas, look at the technical specs for outdoor versions.

How can I be sure that the paperwork about the fire rating matches the panels?

Each package of Fire-Rated Wood Grain Wall Panels comes with test reports that are specific to the batch and packaging that has traceable lot numbers stamped on it. Compare these identifications to the certifications that were given. Third-party laboratory marks on test results show that the tests were checked by a third party, not by the test taker themselves. Ask for certificates of compliance that clearly connect the sample that was checked to your production run. This chain of documentation is checked by our pre-shipment inspection process before containers leave the building.

What kind of maintenance keeps the fire-resistant qualities?

The fire resistance comes from the material itself, not from a treatment on the outside, so regular cleaning doesn't affect the safety features of the Fire-Rated Wood Grain Wall Panels. Visual checks every three months for physical damage or delamination keep the performance's integrity. Don't use strong cleaners or chemicals that could damage the protected topcoat. Panels that are damaged should be replaced right away because parts that are broken might not work as tested. Keeping records of repair tasks helps with insurance compliance and makes future checks easier.

Partner with ZX for Your Fire-Rated Wood Grain Wall Panel Needs

Finding a reliable Fire-Rated Wood Grain Wall Panel supplier can turn a difficult procurement process into a smooth project execution. As a result of its direct manufacturing partnerships in Zhengzhou's central logistics hub, ZX has direct access to certified products that meet international building codes. Our expert team helps with creating specifications, figuring out quantities, and organizing paperwork, all of which speed up the approval process for permits. Standard setups ship in 10 days, and special color matching and size changes can be made quickly to meet the needs of any project. Email our team at info@kangdishi.com to get samples or talk about the unique safety and stylistic needs of your building. You can look at our full line of architectural surface options made for tough business settings at zhongxiudecor.com.

References

1. Anderson, M. (2021). Fire-Resistant Building Materials: Specifications and Applications in Commercial Construction. Building Science Publishers.

2. Chen, L. & Roberts, K. (2020). Polymer Composite Wall Systems: Performance Testing and Code Compliance. International Journal of Construction Materials, 15(3), 287-304.

3. Fire Protection Research Foundation. (2022). Interior Finish Materials: Flame Spread Characteristics and Testing Methodologies. National Fire Protection Association.

4. Harrison, T. (2019). Commercial Interior Design: Material Selection for Safety and Aesthetics. Architectural Materials Quarterly, 42(2), 156-173.

5. Martinez, P. & Wong, S. (2023). Sustainable Building Products: Life Cycle Analysis of Engineered Wall Panels. Journal of Green Building Technologies, 18(1), 45-62.

6. Williams, R. (2020). Installation Best Practices for Fire-Rated Interior Finishes in Healthcare Facilities. Healthcare Design Magazine, 28(4), 112-125.
