Snap-fit Aluminum Skirting Guide: Everything You Need to Know Before Buying

When managing large-scale construction projects, developers and contractors face mounting pressure to deliver quality finishes on time while controlling labor costs. Snap-fit aluminum skirting represents a decisive advantage in this equation—offering a glue-free, mechanically interlocking system that eliminates adhesive mess, accelerates installation schedules, and delivers 15+ years of reliable performance even in moisture-prone environments. Built from rustproof extruded aluminum with precision tolerances, this innovative profile is transforming how B2B buyers approach wall-to-floor transitions in residential towers, commercial complexes, and institutional facilities across global markets.

Introduction

Managing bulk purchases for developments with more than one building requires more than just finding the best prices. So that there aren't any delays on-site, procurement directors need sellers who promise consistent batches, meet tight delivery windows, and offer complete accessory kits. That's exactly what Zhengzhou Zhongxiu Building Materials Co., Ltd. (ZX) does thanks to our strategic relationship with Keyi Aluminum, which makes the most beautiful aluminum profiles in central China. With over 300 dedicated molds, normal lead times of 7–10 days, and free pre-production samples, we help real estate developers and general builders who won't cut corners on quality or time. This guide talks about all the important things you need to think about when choosing glue-free aluminum skirting systems for your next project.

What Is Snap-fit Aluminum Skirting and Why It Matters?

The Engineering Behind Click-In Assembly

Snap-fit Aluminum Skirting is made up of two separate pieces: a cover plate that goes over the mounting track and is attached to the wall, and spring clips that hold the cover plate in place. This system is made from an architectural-grade aluminum alloy called 6063-T5, which has a tensile strength of 160–200 MPa. It replaces standard borders that are attached with nails or glue. The mechanical interlock can handle small flaws in the wall while keeping the smooth, screw-free look. Low-voltage wires can go inside a cable management cavity, so current smart-building systems don't need surface-mounted conduit.

Performance Advantages Over Traditional Materials

Extruded aluminum profiles stay the same size in places like kitchens, bathrooms, and basements where humidity levels change, unlike MDF or PVC skirting boards that warp when they get wet. Our choices for 0.8 mm and 1.5 mm thickness go through either anodized coating (10–15 μm) or powder coating (60–80 μm), which gives them a Class A fire rating and no formaldehyde emissions. Independent salt-spray testing shows that the corrosion resistance is greater than 500 hours, which is very important for seaside projects or places that need to be cleaned very aggressively. The material can be recycled naturally, which meets LEED certification requirements and has less of an impact on the environment than alternatives made from petroleum.

Cost Implications for Multi-Unit Developments

When you add up the time it takes for the glue to cure and the work that goes into preparing the surface, labor makes up 40 to 60% of the cost of installing standard Snap-fit Aluminum Skirting baseboards. With snap-fit systems, installation time is cut in half. For example, our clients say that two-person crews can finish 200-meter corridors in less than four hours. Getting rid of glue cuts down on ongoing material costs and makes cleanup easier. When applied to a 300-unit apartment building, these savings lead to a shorter schedule and lower costs for the contractors, which directly increases the project's profit margins.

How to Choose the Best Snap-fit Aluminum Skirting for Your Project?

Dimensional Specifications and Load Requirements

Standard shapes come in lengths of 2.5 meters and heights of 40 mm, 60 mm, and 80 mm to fit a variety of building sizes. Choosing the right thickness depends on how likely it is that the panel will be hit. For example, 0.8 mm gages work well in low-traffic domestic units, while 1.5 mm profiles can handle business settings where cleaning equipment and moving furniture create daily collision risks. Make sure that the cross-sectional tolerances stay within ±0.2 mm to make sure that the clips stay in place across multiple production batches. This is especially important when ordering more than 50,000 linear meters for delivery in stages.

Surface Finishes and Design Compatibility

We have three standard finishes: silver, champagne, and black. For special color schemes, we can also do custom powder coating. Anodized surfaces are better at resisting scratches in high-traffic areas, and powder-coated choices can be perfectly color-matched to flooring systems. Choose the type of finish during the sample process to make sure it works with installs of marble, engineered wood, or luxury vinyl plank. Spectrophotometer verification (Delta E < 1.5) keeps color stability across batches, making sure that the look is the same from the lobby on the first floor to the hallways in the top.

Certification and Compliance Documentation

For projects that will be exported, real estate developers need to make sure that they have CE marking and RoHS compliance. For public-area installations in businesses, they need to have B1 fire-resistant certification. ZX offers complete documentation sets that include test reports on materials, certificates of fire safety, and statements of environmental compliance. Our partner factory's ISO 9001:2015 approval means that everything can be tracked, from the raw metal billet to the final packing. To speed up the legal approval process for your project, ask for certified copies during the quote phase.

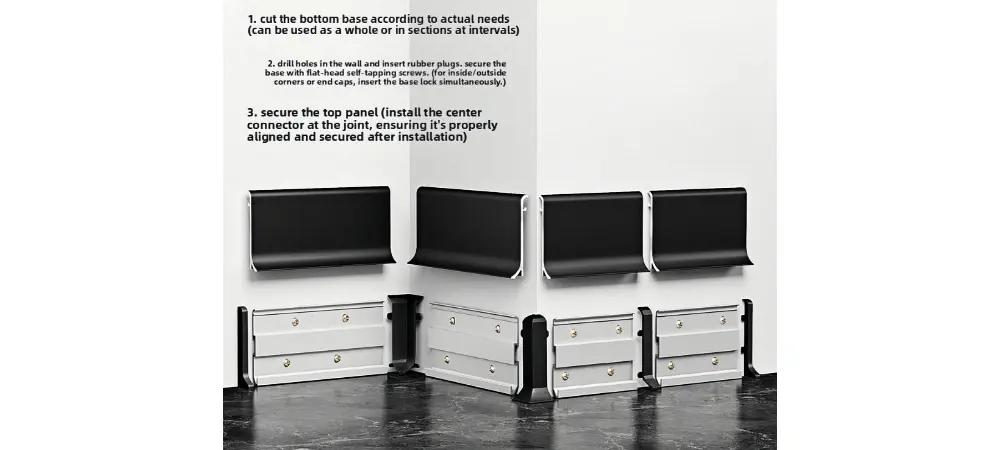

Step-by-Step Installation Guide for Snap-fit Aluminum Skirting

Pre-Installation Preparation

Clean the walls to get rid of dust, efflorescence, and loose paint that could make it harder for the tracks to stick. Use a laser level to draw straight lines that take into account the different slopes of the floors; our mounting tracks can handle up to 3 mm of difference per meter. To avoid making burrs, use a carbide-tipped miter saw set at 3,200 RPM to cut tracks and cover plates to the right length. Before installing them permanently, you should test the fit by putting together corner sections ahead of time using matching inside/outside corner connectors and end caps.

Mounting Track Installation

Use 400 mm-apart mechanical fasteners to attach the Snap-fit Aluminum Skirting base track to the wall. In places that will be subject to side loads, change the spacing to 300 mm. As an extra hold, put construction adhesive on the back of the track, especially if the base is drywall. Check the alignment of the track every 1.5 meters to avoid long-term changes that leave gaps that can be seen. Let the glue dry according to the manufacturer's instructions before you cover the installation. In climate-controlled settings, this usually takes 24 hours.

Cover Plate Engagement and Quality Checks

Place the decorative cover so that it is at a 45-degree angle to the track. Then, press hard along its length until you hear clicks that show it is fully engaged. Check the joints at the inside corners, outside corners, and end caps to make sure they are flat and that the reveal lines are all the same. Try a gentle outward pull on each section to see if it works. Covers that are properly engaged need deliberate release pressure to come loose. Write down any parts that need to be fixed before the final acceptance, and take pictures of the joint details for guarantee purposes.

Maintenance Protocols for Longevity

To keep anodized coats from wearing away, clean metal surfaces every three months with a pH-neutral detergent and microfiber cloths. Check the engagement of clips once a year in high-traffic areas and re-seat covers that are coming loose from being hit so many times. The snap-fit design makes it possible to remove the panels without damaging the wall for cable upgrades or repainting. This is a big benefit over adhesive-fixed systems that need to be taken down during repairs.

Procurement Considerations: Where and How to Buy Snap-fit Aluminum Skirting?

Factory-Direct Sourcing Versus Distributor Channels

When you buy directly from makers like ZX, you skip the 25–40% markups that distributors add, which is very important when you need to buy 100,000 linear meters or more for master-planned communities. When you work with a factory, you can get custom extrusion dies for your own profiles. This lets you make your designs stand out across all of your projects. Direct buying also makes it easier to talk to each other during quality checks and pre-production samples, cutting reaction times from days to hours during important project stages.

Batch Consistency and Phased Delivery Management

For multi-phase projects, matching colors across deliveries that happen over 12 to 24 months is necessary. Include requirements for lot tracking in purchase agreements and keep track of the anodizing bath parameters and powder coating batch numbers for future use. ZX keeps sealed samples from every production run so that the color can be checked before the next shipment. You can avoid on-site storage costs and material degradation from long-term weather exposure by negotiating delivery schedules that are spaced out to match your building goals.

Sample Evaluation and Pre-Order Testing

Ask for full sets of Snap-fit Aluminum Skirting accessories during sampling, such as corner pieces, end caps, and mounting tracks, to check how easy it is to install and how well it fits in with the overall look. Test samples that are going to be used in seaside projects with salt spray to make sure that their corrosion resistance is higher than the natural conditions of the project. Before placing large orders, put test pieces in buildings that are already occupied to get feedback on how well they work for soundproofing and cleaning. ZX gives free samples to qualified developers, which speeds up the decision-making process and doesn't cost anything.

Trusted Brands and Reliable Suppliers of Snap-fit Aluminum Skirting

Manufacturing Scale and Technical Capabilities

Zhongxiu Building Materials works with Keyi Aluminum as a key partner and shares a 132-mu production site with three integrated plants. This control over the whole process, from extruding and anodizing metal to cutting precisely and packing, makes sure that the quality is the same for orders of a million units or more. With more than 300 of our own mold designs, we can make changes quickly and keep costs down in a way that competitors who use third-party extruders can't. Our location in central China makes it easier to ship goods to important Asian ports and gives us 10–15 day delivery windows to foreign destinations.

Quality Assurance Protocols

There are six steps that are used to check every production batch: the purity of the raw materials is checked, the dimensions of the extrusion are checked, the thickness of the surface treatment is measured, clip retention is tested, the integrity of the packaging is confirmed, and random samples are taken before the batch is shipped. With CNC testing tools that can be tracked back to national standards, measurements are kept within ±0.2 mm of accuracy. Eddy-current testing is used to check the thickness of an anodized film, and cross-hatch testing according to ASTM D3359 is used to check the binding of a powder coating. This multiple-level quality control gets rid of the batch rejections and field failures that happen when projects buy from suppliers who aren't certified.

Post-Delivery Support Infrastructure

Technical support goes beyond shipping; installation guides are available in English, Spanish, and Arabic so that project teams from different countries can work together. Video tutorials show the right way to cut, put together corners, and fix common installation problems. ZX keeps a buffer stock of profiles and tools that are in high demand. This way, they can send out emergency orders within 72 hours to keep projects from being delayed, which can be very expensive. Material flaws and inconsistent manufacturing are covered by warranties, and replacement policies are spelled out in detail in purchase agreements to protect your project's emergency budgets.

Conclusion

When choosing glue-free Snap-fit Aluminum Skirting systems, you have to weigh the short-term cost against the long-term performance, ease of installation, and stability of the supply chain. For B2B procurement pros in charge of multi-building projects, the choice goes beyond unit pricing and includes guaranties of batch stability, the availability of accessories, and the supplier's responsiveness during key construction phases. ZX's factory-direct pricing, 7–10 day production cycles, and thorough pre-production sampling get rid of the main problems that cause projects to take longer than planned and cost more than planned. Our partnership with Keyi Aluminum, which has ISO certification and more than 30 years of experience in manufacturing, gives large-scale developers the scalable capacity and technical depth they need.

FAQ

How does glue-free installation reduce project costs compared to traditional baseboard methods?

Without adhesives, material costs go down by about 15–20% and installation work goes down by 40–50%. Traditional methods need to prepare the surface, apply the glue, wait for it to cure, and clean up after installation. Snap-fit systems skip all of these steps. Large projects save even more time: a 500-unit apartment building gains 7–10 days on the critical path, which means less money spent on liquidated damages and earlier occupancy revenue.

Can custom colors be matched to specific flooring or wall finishes?

Custom powder painting can be done in any RAL, Pantone, or custom color, and the lowest amount that can be ordered is 5,000 square meters. During the quotation process, you can send us physical samples or spectrophotometer readings. Our technical team will then send you digital images and physical color chips for approval before production begins. Standard wait times are extended by 3–5 days for custom finishes. This helps keep projects on schedule and ensures that the design purpose is met exactly.

What lifespan can developers expect in high-humidity environments like coastal regions?

When placed correctly, metal skirting with an anodized or powder-coated finish will last 15 to 25 years in coastal and tropical regions without needing any repairs. Testing with salt spray shows that it is resistant to corrosion for more than 500 hours, which is a lot longer than galvanized steel or composite alternatives. Cleaning the surface with pH-neutral solutions on a regular basis keeps it looking good longer, and the non-porous metal base stops mold growth that happens on wood-based products that are subject to constant humidity.

Partner with ZX for Your Next Large-Scale Development

Engineered aluminum skirting options from Zhengzhou Zhongxiu Building Materials Co., Ltd. are made for business developers and general builders working on projects in Asia, the Middle East, and developing markets. Custom height profiles, proprietary color matching, and phased delivery planning that works with your building goals are some of the things that our Snap-fit Aluminum Skirting maker can do. Email our team at info@kangdishi.com to get free samples, look over technical specs, and talk about volume pricing structures made for multi-phase projects. You can look at our full selection of metal decorative profiles and accessories at zhongxiudecor.com. All of them are backed by the benefits of factory-direct sourcing that our competitors can't match.
